Model
|
ZJ50/3150DB
|
ZJ40/2250DB
|
|
Drilling depth (4-1/2” DP) ft (m)
|
16, 400 (5, 000)
|
13, 200 (4, 000)
|
|
Max hook load lb (kN)
|
770, 000 (3, 500)
|
550, 000 (2, 500)
|
|
Max hook speed (10 lines) ft/s (m/s)
|
0.75-4.92 (0.23-1.5)
|
0.82-5.38 (0.25-1.64)
|
|
Drill line dia&Qty, in. (mm)
|
Φ1-3/8” (35) 10/12
|
Φ1-1/4” (32) 10
|
|
Diesel engine, hp (kW) (1, 300 r/min)
|
1, 110×3 (816×3)
|
1, 050×3 (773×3)
|
|
HP, Drawworks hp (kW)
|
1, 500 (1, 100)
|
1, 000 (735)
|
|
Speed, Drawworks
|
Stepless, one gear
|
|
Main drum Dia.× length in. (mm)
|
Φ28.3” ×51.6” (720×1, 310)
|
Φ25.2” × 50 (640×1, 270)
|
|
Brake type
|
Hydraulic disc brake
|
Hydraulic disc brake
|
|

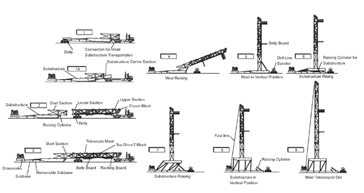

Mast type
|
K type
|
K type
|
|
Mast effective height ft (m)
|
136 (41.5)
|
136 (41.5)
|
|
Max static load, mast lb (kN)
|
770, 000 (3, 500)
|
550, 000 (2, 500)
|
|
Capacity, monkey board ft (m) (5” DP)
|
16, 400 (5, 000)
|
13, 120 (4, 000)
|
|
Max wind load (km/h)
|
110
|
110
|
|
Height, substructure, ft (m)
|
26 (8)
|
22 (6.7)
|
|
Clear height under rotary beam ft (m)
|
22 (6.8)
|
18 (5.4)
|
|
Floor area ft2 (m2)
|
32.5×36 (9.9×11)
|
32.5×36 (9.9×11)
|
|
Setback capacity, ft (m)
|
16, 400 (5, 000)
|
13, 120 (4, 000)
|
|
Control/lighting/power system
|
24 V/220 V/380 V or 24 V/110 V/480 V
|
|
Rated pressure, air system Psi (MPa)
|
114.4-143 (0.8-1)
|
114.4-143 (0.8-1)
|
|
Overall dimensions ft (m)
|
81.37×10.83×14.76
(24.8×3.3×4.5)
|
81.37×10.83×14.76
(24.8×3.3 ×4.5)
|
|
Model, rotary table/open in. (mm)
|
ZP275/Φ27.5” (Φ700)
|
ZP275/Φ27.5” (Φ700)
|
|
Max working SPM, rotary table r/min
|
300 r/min
|
300 r/min
|
|
Traveling block
|
YG350
|
YG250
|
|
Swivel
|
SL350
|
SL225
|
|
